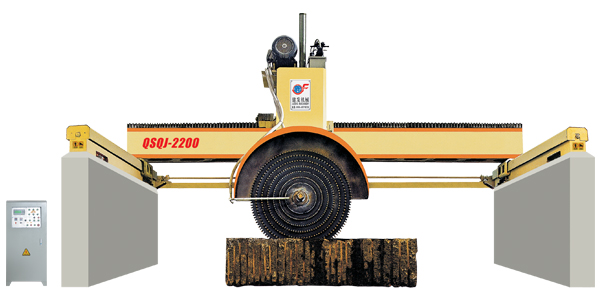

名稱 | appellation | QSQJ-2200 |
加工荒料尺寸 | size of processing blocks | 3300x2800x1100mm |
設備外形尺寸 | dimension of external form | 7500x3800x6300mm |
鋸片最大直徑 | maximum blade diameter | 2500mm |
主電機功率 | main motor power | 37kw |
主機升降行程 | Host lift travel | 1200mm |
總重量 | weight | ≈9000kg |
注:加工長寬尺寸和設備外型尺寸,電機功率,可根據客戶需要制作對應尺寸,也可另配旋轉工作臺。
Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands,Revolving table can be provided additionally and the depletion
